Curved roller conveyors

Curved roller conveyor driven

Curved roller conveyor driven Curved roller conveyor driven - draw

Standard parameters
Outer traffic radius Rk 880 – 1 800 mm
Internal traffic radius Ri 360 – 850 mm
Conveyor load 100 kg
Drive 3 x 230 – 400 V (1 x 230 V)
Speed of moving transported material * 3 - 30 m/min
Roller material polypropylen
Operating temperature 10 – 40 °C
* Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible.
The above figures are standard. Other values on request.



Demand form

Questionnaire to perform curved roller conveyor driven

Curved roller conveyor undriven

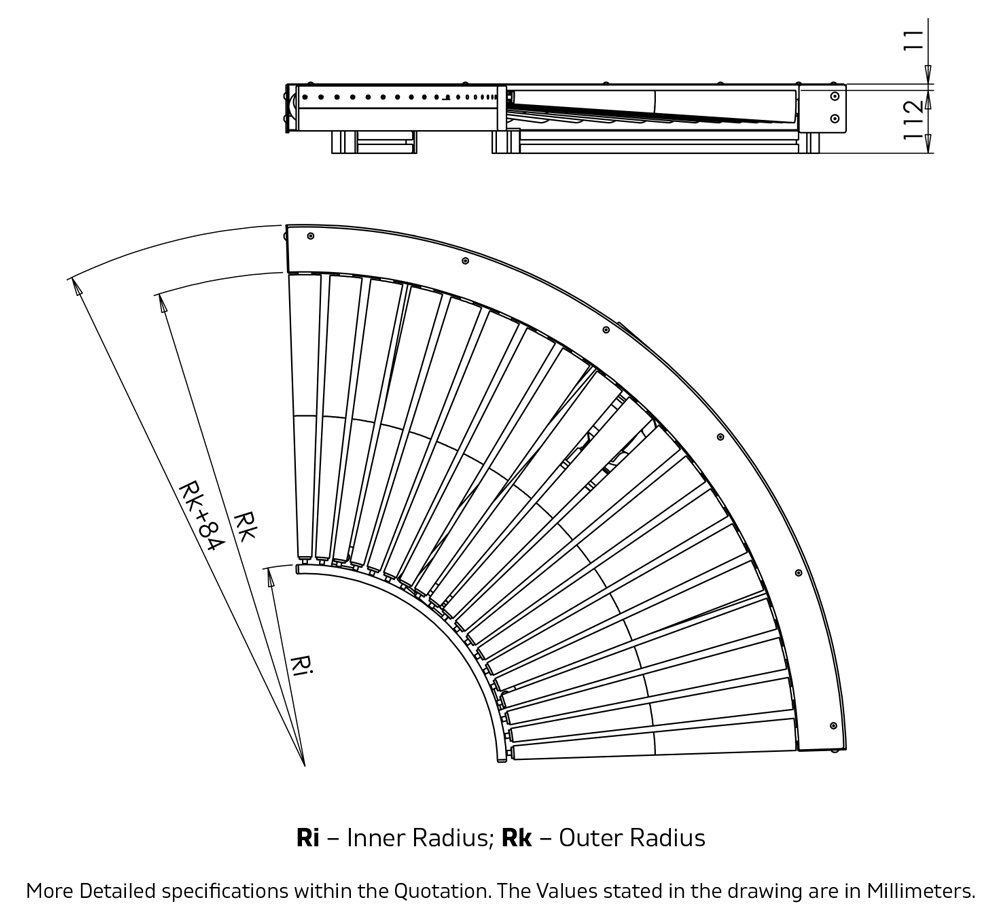

Curved roller conveyor undriven Curved roller conveyor undriven - draw

Standard parameters
Outer traffic radius Rk 880 – 1 800 mm
Internal traffic radius Ri 360 – 850 mm
Conveyor load 100 kg
Roller material polypropylen
Operating temperature 10 – 40 °C
The above figures are standard. Other values on request.



Demand form

Questionnaire to perform curved roller conveyor undriven
