Roller conveyors straight

Roller conveyor direct driven

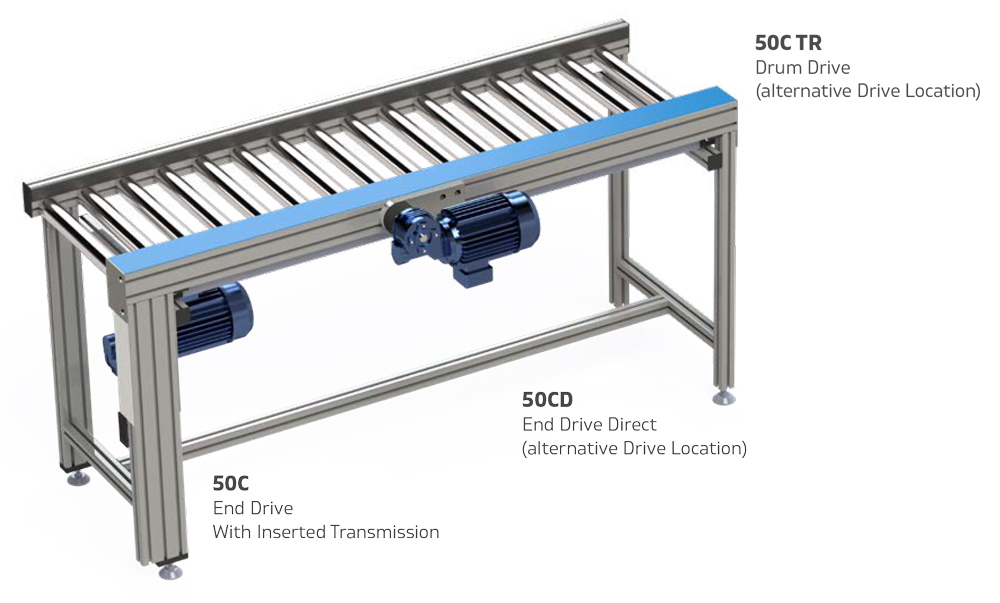

Roller conveyor direct driven Roller conveyor direct driven - draw

Standard parameters
Length of the conveyor 300 – 13 000 mm
Width of conveyor 200 – 1 000 mm
Conveyor load 35 kg/m
Drive 3 x 400 V (1 x 230 V)
Speed of moving transported material * 3 - 31 m/min
Roller material PVC, zinc coated, stainless steel, Al
Operating temperature 10 – 80 °C
Roller diametr 50 mm
* Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible.
The above figures are standard. Other values on request.



Demand form

Questionnaire to perform roller conveyor direct driven

Roller conveyor direct undriven

Roller conveyor direct undriven Roller conveyor direct undriven - draw

Standard parameters
Length of the conveyor unlimited
Width of conveyor 100 – 800 mm
Conveyor load 35 kg/m
Roller material PVC, zinc coated, stainless steel, Al
Operating temperature 10 – 60 °C
Roller diameter 32 a 50 mm




Demand form

Questionnaire to perform roller conveyor direct undriven
