Curved Modular belt conveyors

Curved modular belt conveyors are mainly designed to transport piece goods of various properties, especially where the position of the product is to be maintained when the flow direction is changed and the building space is optimized. They are mainly used for installation in larger transport units or, production and assembly lines. In contrast to the curved belt conveyors with the process band, the curved modular belt conveyors must have an input and output straight section.


Curved Modular belt conveyors

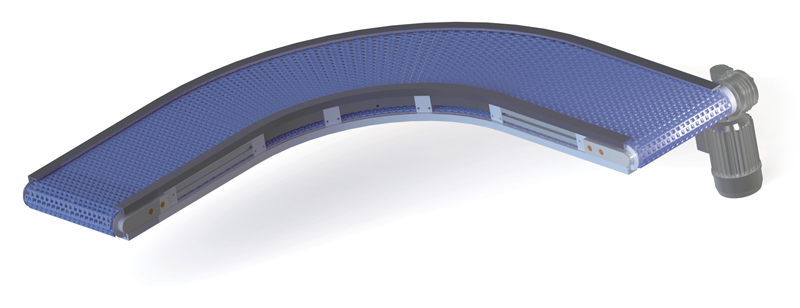

Modulární dopravníkové zatáčky Modulární dopravníkové zatáčky - výkres

Standard parameters
Width of belt P 200 – 1 450 mm
Internal radius R (min. 2,2 × P) 440 mm
Conveyor load 50 kg/m
Drive 3 x 230 – 400 V (1 x 230 V)
Speed of modular belt * 3 – 30 m/min
Transport belt POM, PP
Operating temperature 10 – 80 °C
* Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible.
The above figures are standard. Other values on request.
