Thanks to the modular system we offer a wide range of options for straight belt conveyors. Belt conveyors are differentiated according to the height of the frame (40 or 80 mm), the drive connection type (C with the transaxle, the direct drive CD, the drum drive CTR and the MINI 24V with the drive concealed in the conveyor body).
| Standard parameters | |
| Length of the conveyor | 500 – 6 000 mm |
| Width of belt | 40 – 600 mm |
| Conveyor load | 10 kg/m |
| Drive | 3 x 400 V (1 x 230 V) |
| Belt speed * | 3 - 30 m/min |
| Transport belt | PVC, PU, textile |
| Operating temperature | 10 – 80 °C |
| Drum diameter | 44 mm |
| * Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible. The above figures are standard. Other values on request. |
|
Demand form

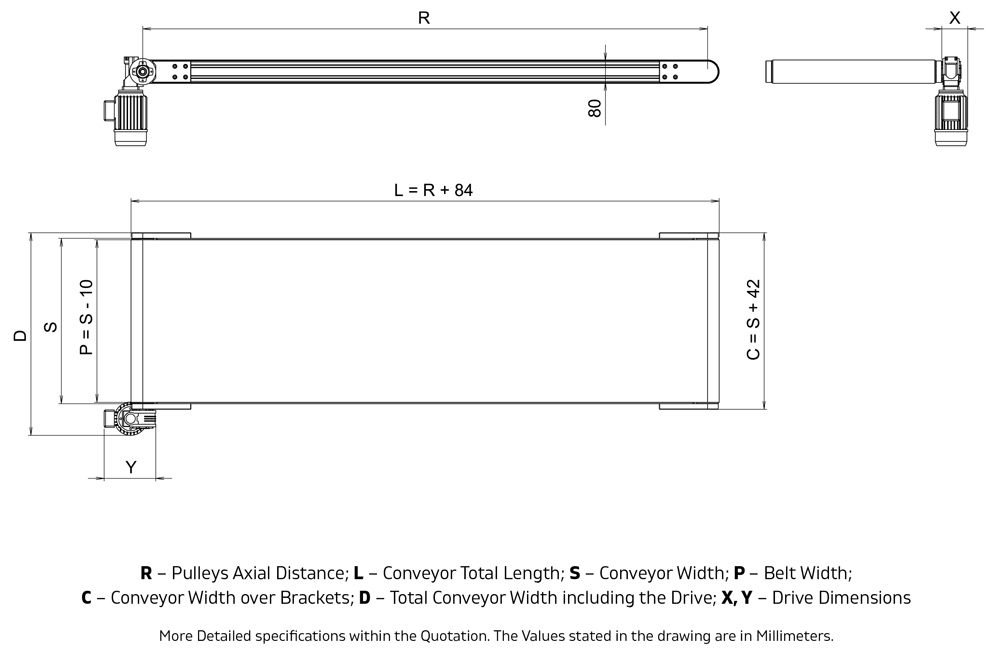

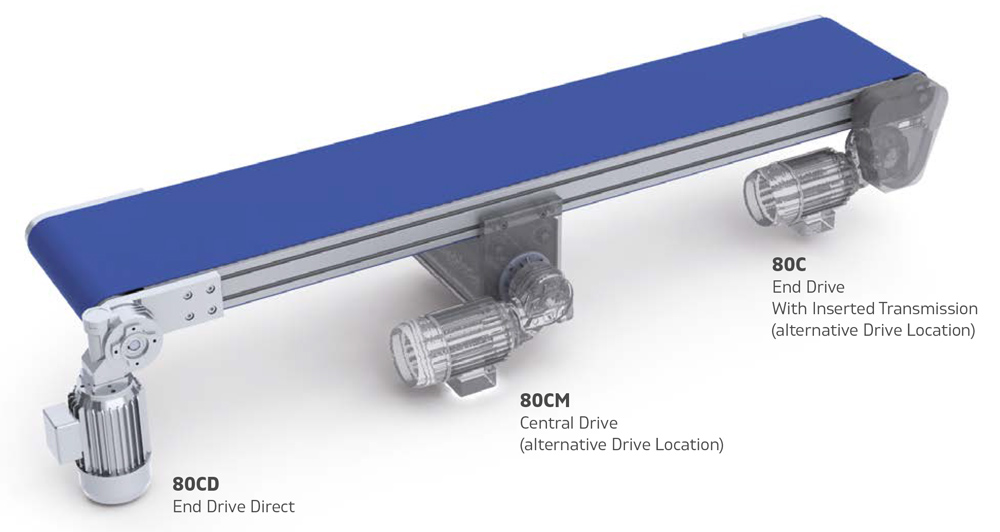

| Standard parameters | |
| Length of the conveyor | 600 – 10 000 mm |
| Width of belt | 80 – 1 000 mm |
| Conveyor load | 20 kg/m |
| Drive | 3 x 400 V (1 x 230 V) |
| Belt speed * | 5,5 - 54 m/min |
| Transport belt | PVC, PU, textile |
| Operating temperature | 10 – 80 °C |
| Drum diameter | 84 mm |
| * Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible. The above figures are standard. Other values on request. |
|
Demand form
| Standard parameters | |
| Length of the conveyor | 500 – 3 000 mm |
| Width of belt | 30 – 490 mm |
| Conveyor load | 5 kg/m |
| Drive | 1 x 230 V (3 x 230 V) |
| Belt speed * | 1 - 30 m/min |
| Transport belt | PVC, PU, textile |
| Operating temperature | 10 – 60 °C |
| Drum diameter | 44 mm |
| * Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible. The above figures are standard. Other values on request. |
|
Demand form

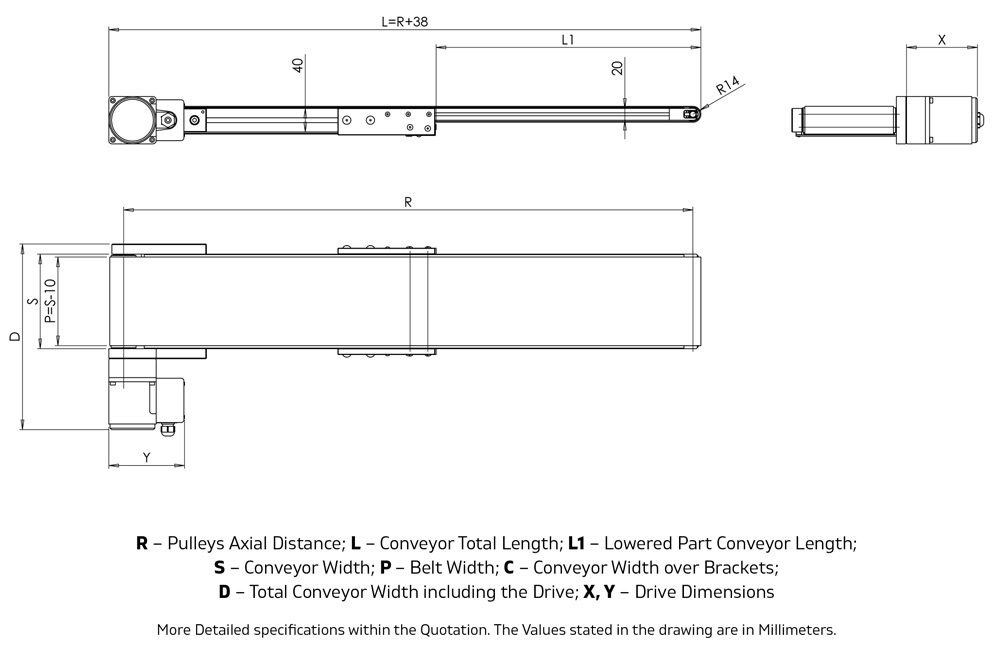

| Standard parameters | |
| Length of the conveyor | 500 – 3 000 mm |
| Width of belt | 70 – 190 mm |
| Conveyor load | 5 kg/m |
| Drive | 1 x 230 V (3 x 230 V) |
| Belt speed * | 1 - 30 m/min |
| Transport belt | PVC, PU, textile |
| Operating temperature | 10 – 60 °C |
| Drum diameter | 44 mm |
| Maximal length L1 without support (free end) | 500 mm |
| Maximal length L1 with support | L - 400 mm |
| * Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible. The above figures are standard. Other values on request. |
|
Demand form

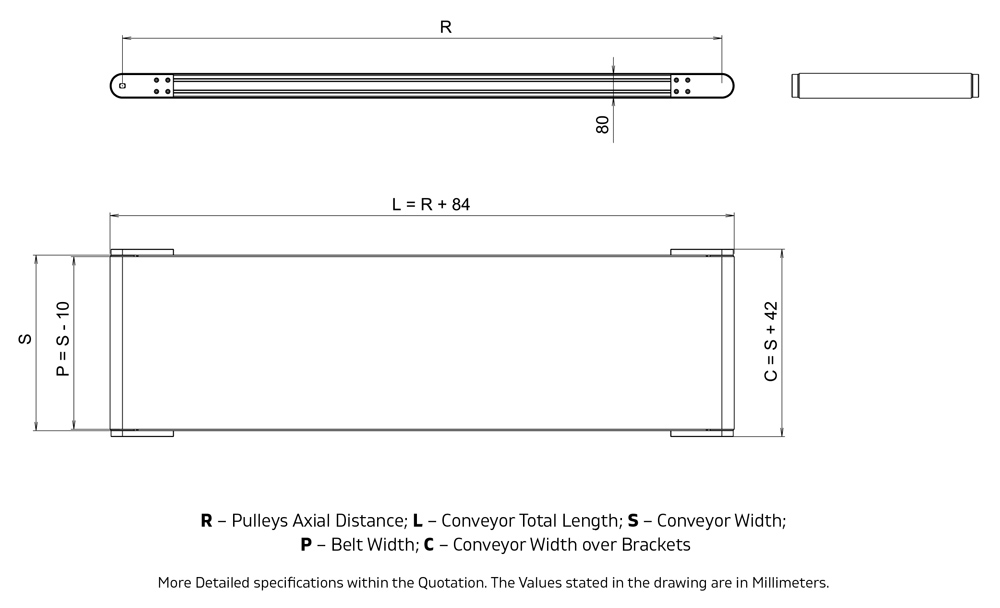

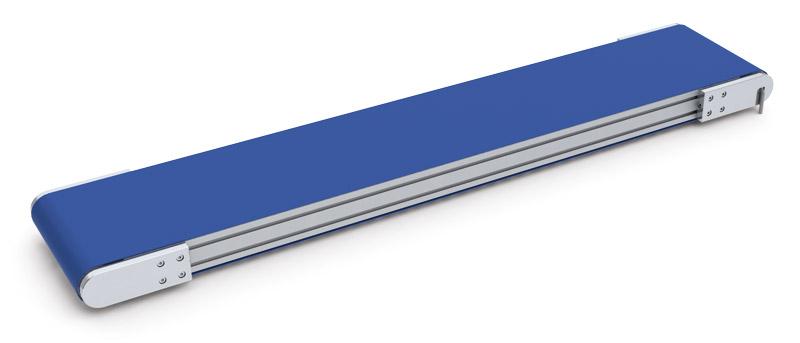

| Standard parameters | |
| Length of the conveyor | 600 – 10 000 mm |
| Width of the belt | 300 – 1 000 mm |
| Conveyor load | 20 kg/m |
| Drive | 1 x 230 V, 3 x 230 V, 3 x 400 V |
| Belt speed * | 5 - 46 m/min |
| Transport belt | PVC, PU, textile |
| Operating temperature | 10 – 80 °C |
| Drum diameter | 84 mm |
| * Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible. The above figures are standard. Other values on request. |
|
Demand form
| Standard parameters | |
| Length of the conveyor | 370 – 2 000 mm |
| Width of belt | 80 – 200 mm |
| Conveyor load | 5 kg/m |
| Drive | 24 V DC |
| Belt speed * | 0,2 – 18 m/min |
| Transport belt | PVC, PU, textile |
| Operating temperature | 10 – 80 °C |
| Drum diameter | 44 mm |
| * Speed control via a frequency inverter in the range of 40 - 150% (rated speed=100%) is possible. The above figures are standard. Other values on request. |
|
Demand form
Questionnaire to perform belt conveyor MINI 24V
